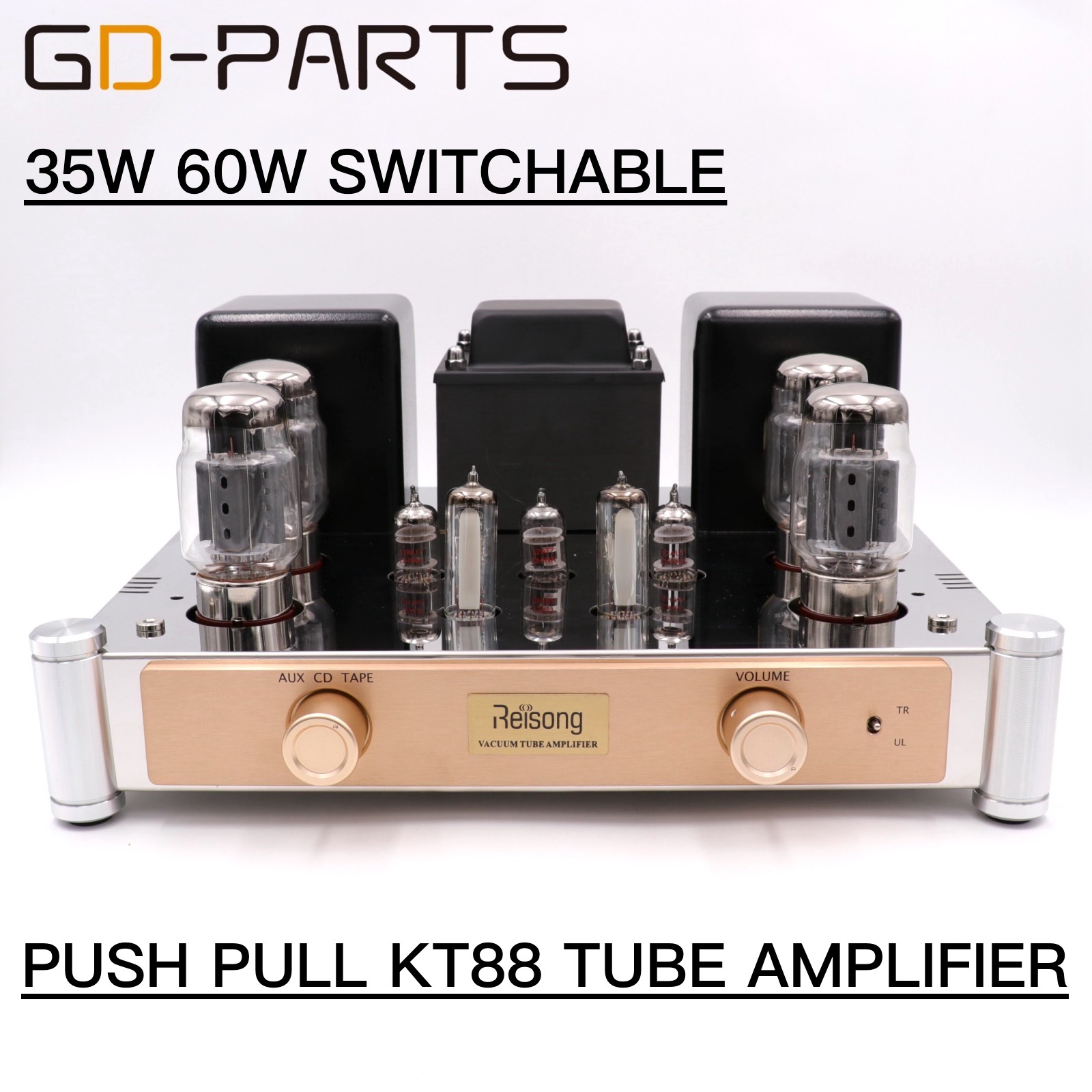

Vintage KT88 Push Pull Vacuum Tube Amplifier Hifi Stereo Integrated AMP 35W 60W Switchable: MT-88
Item ID #MT-88
List Price: $635.00
Price: $619.00
Qty.Range(unit) Price(per unit) Discount
1 $619.00 $0.00
2 $585.00 $34.00
3 $555.00 $64.00
5 $525.00 $94.00
10 $490.00 $129.00
Quantity: Unit(s)
Description

Brand new PUSH PULL KT88 tube amplifier

Item No.: MT-88 Self Bias

Stereo, hand solder wired,tag board chassis mount


Easy switchable output power (toggle switch on the front plate)

Output power: 35Wx2 (triode connection)

Output power: 60Wx2 (ultra linear connection)

TUBES:

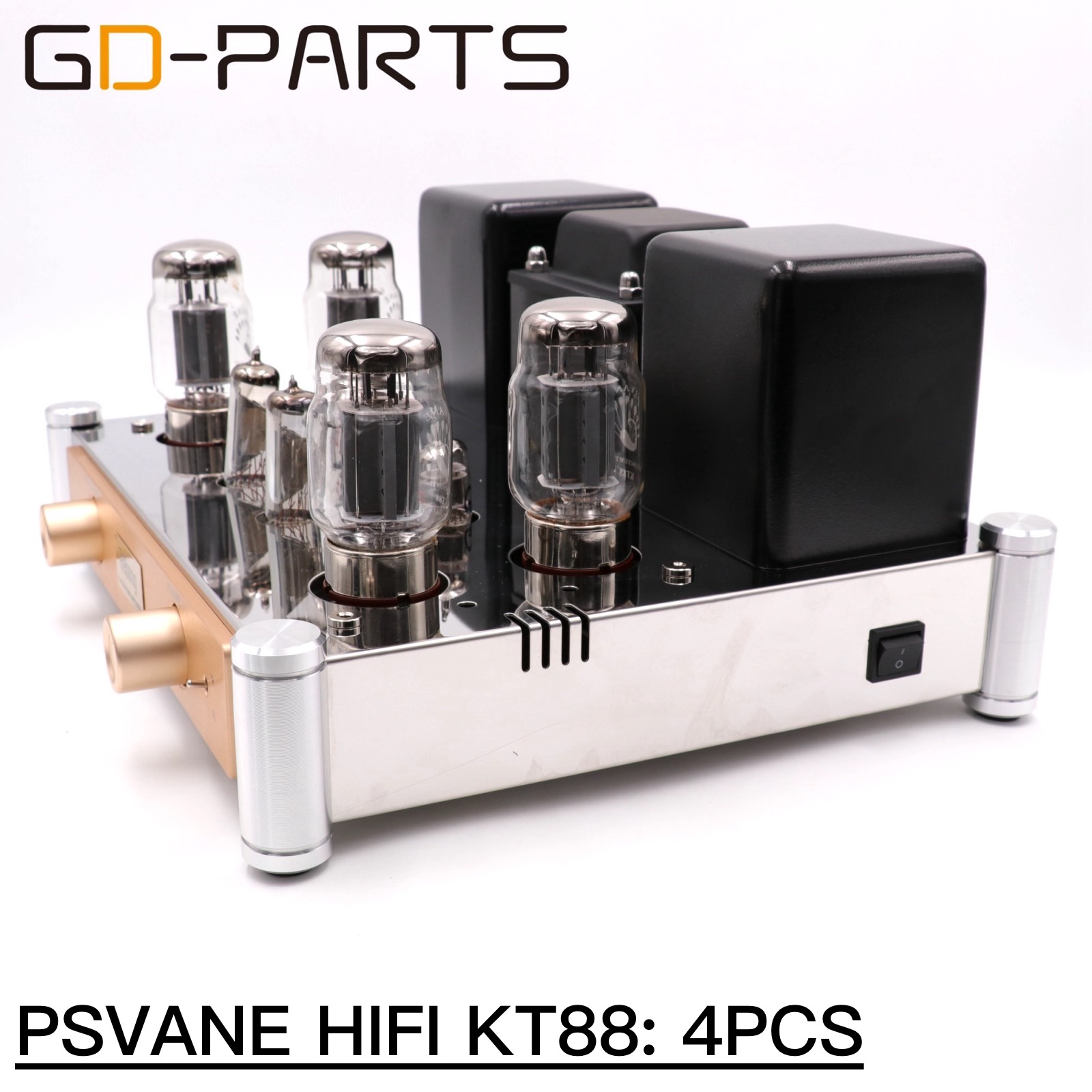

PSVANE HIFI KT88x4PCS (power tubes)
Shuguang 12AT7x1PC      (voltage amplify)
Shuguang 12AU7x2PCS   (current drive)
NOS 6E2x2PCS

Mirror finish stainless steel chassis

Machined aluminum front gear plate,anodized

ALPS volume potentiometer (more than 5 years service life)

Frequency response: 25Hz-45KHz

Input impedance: 100Kohm

Output impedance: 4ohm  80hm

Output transformer: 60W

Power transformer: 500W (114-80 coils)

S/R ratio: 89dB

Input sensitivity: 800mV

Distortion: less than 1% (1KHz)

Product dimension: 410*345*190mm (W*D*H)

Weight: about 24KG

Package dimension: 550*450*330mm(W*D*H)

Features:

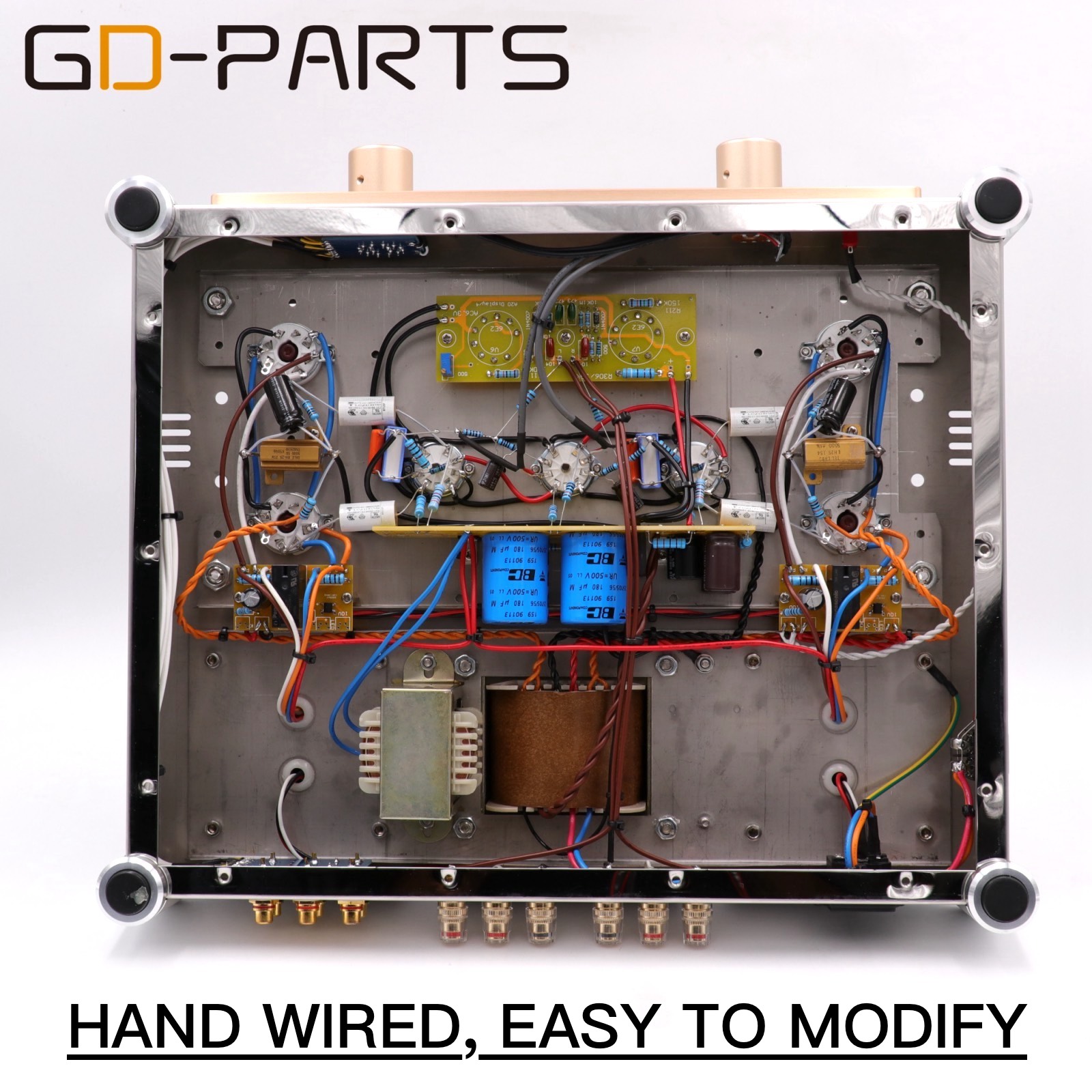

1. Hand wired,tag board chassis mount
2. Easy to upgrade the tubes (KT88,12AT7,12AU7,6E2)
3. Sealed output transformer,stable,durable
4. Easy to switch triode&ultra linear connection

Quantity: 1set/lot
