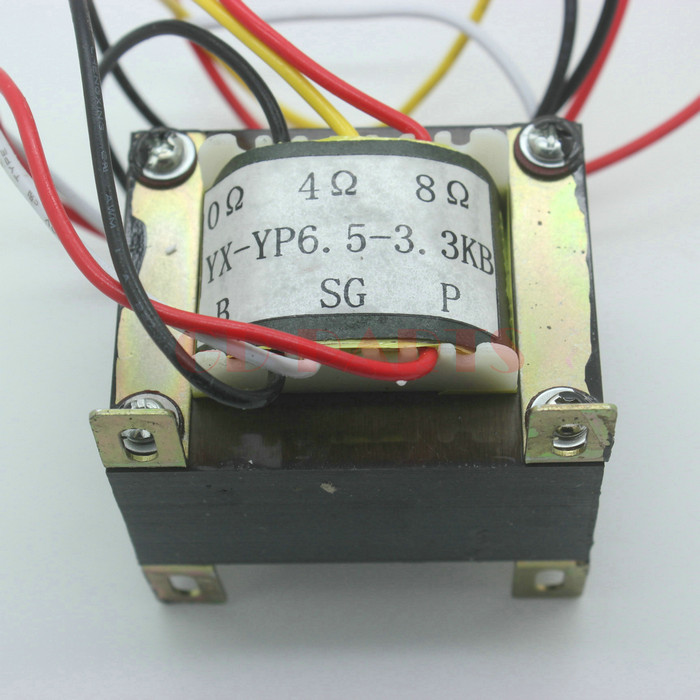

1 PAIR 6.5W Output Transformer For 6P3P,EL34,FU7,KT66,KT88,KT100 Tube amplifier: GDOP001
Item ID #GDOP001
List Price: $79.00
Price: $65.00
Qty.Range(unit) Price(per unit) Discount
1 $65.00 $0.00
5 $55.00 $10.00
10 $45.00 $20.00
50 $38.50 $26.50
Quantity: Unit(s)
Description

BRAND NEW OUTOUT TRANSFORMER

Item No.: GDOP001

Suitable for Single End 6P3P, EL34, FU7,KT66,KT88,KT100,6N5P,2A3 etc.

Primary Impedence (Kohm): 3.3K with SG (super linear)

Primary Inductance: 15H

Leakage Inductance: 10mH

Secondary Impedence: 4ohm, 8ohm

Frequency Response: 20-35KHz

Dimension of Iron Core: 22*33 (EI66, H10, 0,35EI)

Output Power Rate: 6.5W

Outside Dimension: 66*62*55mm  (L*W*H)

Net Weight: 0.92KG/pc

The Price is for 1PAIR
