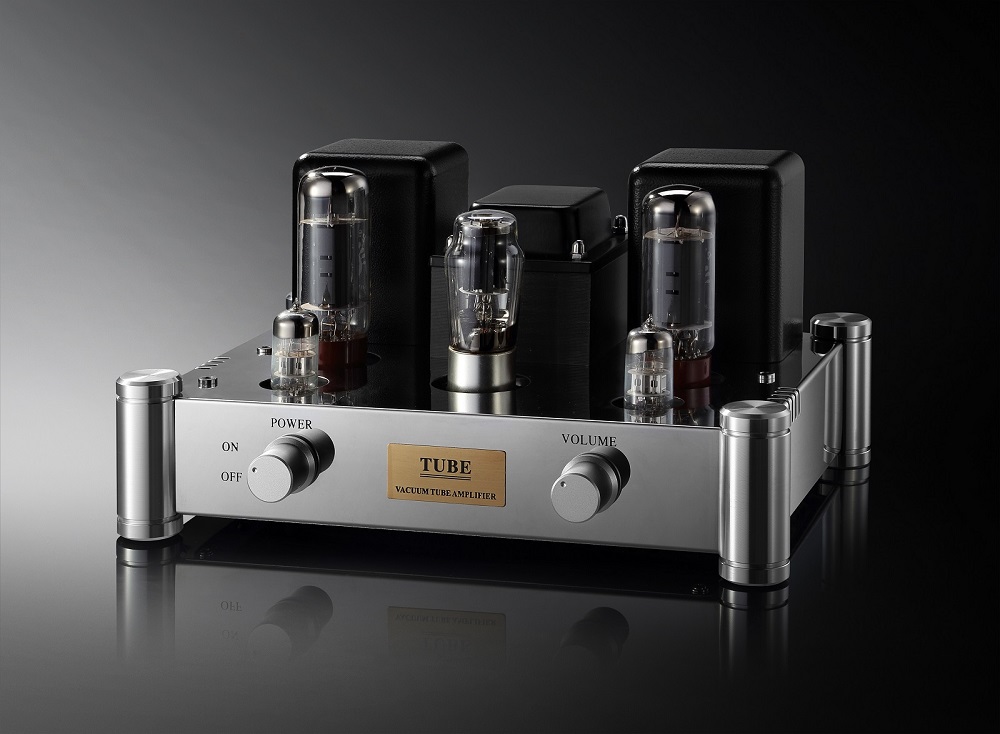

Brand new single end EL34 tube amplifier
Item No.: A10
Class A, upgraded version
*Power input: 110V-240V(optional)
*Tubes:
Voltage amplification: 6N2: 2PCS
Power output: Shuguang EL34B: 2PCS
Rectifier: 5Z4P: 1PC
*Power transformer: Z11 0.35 (thickness=50mm)(96-50)
*Output transformer: 0.35 (66-36)
*Chassis: Mirror style polished stainless steel, machined
*Four aluminum column,CNC machined
*High end signal output connectors
*Alps potentiometer
*Output power: 12W (@8ohm,super linear connection)
*Frequency response: 20Hz-28KHz(±1db)
*Signal to noise ratio: 88dB
*Distortion: less than 1% (1KHz)
*Input signal: 750mV
*Input impedance: 100K
*Output impedance: 4ohm,8ohm
*Outside dimension: 315mm (width)*258mm(direction)*163mm(height)
*Package dimension: 410*345*260mm
Gross weight: 12KG

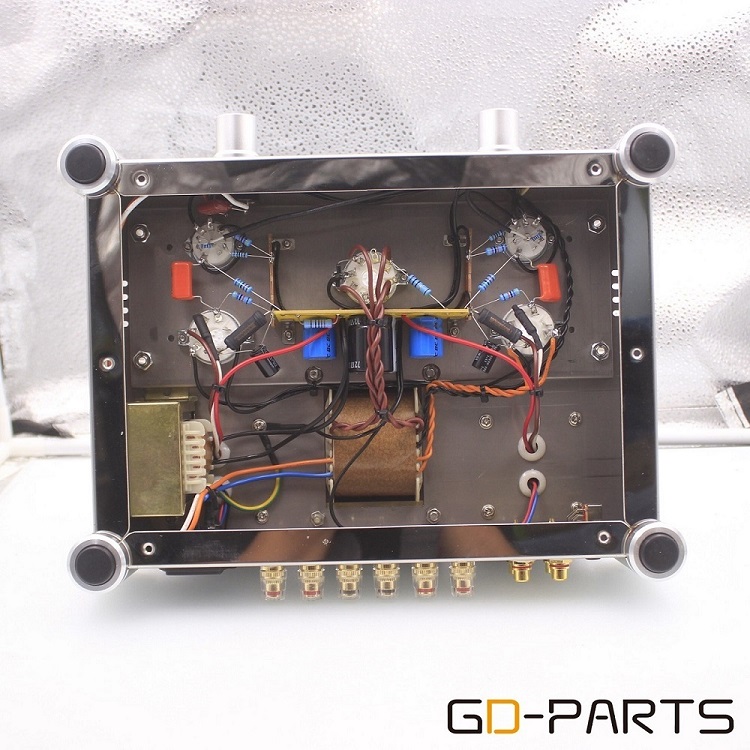

Chassis mount,hand wired
