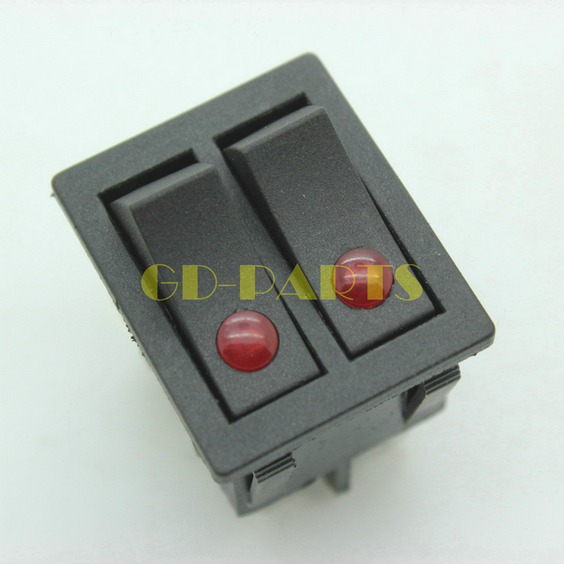

KCD8 DPDT ON OFF AC Power Boat Rocker Swith W Red Cat Eye Lamp 250V 15A/125V 20A: GDPS0035
Item ID #GDPS0035
List Price: $0.85
Price: $0.75
Qty.Range(unit) Price(per unit) Discount
1 $0.75 $0.00
10 $0.65 $0.10
50 $0.55 $0.20
100 $0.45 $0.30
Quantity: Unit(s)
Description

BRAND NEW AC POWER ROCKER SWITCH

Item No.: GDPS0035

Rated Value: 250V 15A, 125V 20A

With Red Cat Eye Lamp

6PINS, DPDT

Material of Insulation: Nylon

Material of Conductor: Brass, Nickle Plated

Contact Resistance: less than 0.03Mohm

Insulation Resistance: more than 100Mohm

Service time: 10,000 times

Dielectric Strength: AC 1500V (50Hz)/Min

Overall Length: 31mm

Overall Width: 26mm

Depth: 29mm

Panel Cut Out Length:


Panel Thickness
Panel Cut Out Length(+0.1mm)
 0.75-1.25mm
 28mm (30mm)
 1.25-2.50mm
 28.20mm(30.20mm)
 2.50-4.20mm
 28.50mm(30.50mm)

Panel Cut Out Width: 22mm
