Green Light KCD4 ON OFF Rocker Switch 250V 15A/125V 20A 31x25.5mm CQC RoHs: GDPS0030
Item ID #GDPS0030
List Price: $0.50
Price: $0.45
Qty.Range(unit) Price(per unit) Discount
10 $0.45 $0.00
50 $0.38 $0.07
100 $0.30 $0.15
500 $0.25 $0.20
Quantity: Unit(s)
Description

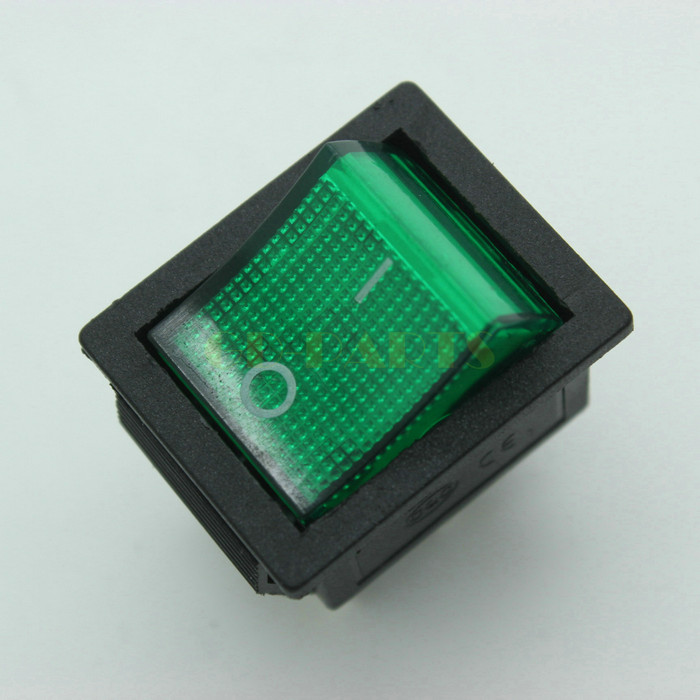

Brand new KCD4 style Red Light Rocker Switch

Item No.: GDPS0030

Green Light

Rated Value: 250VAC, 15A, 125VAC, 20A

Material of Conductor: Ni-Plated Brass

Material of Insulator: Fire Retardation PA Plastic

Withstand Voltage Strength: AC1500V(50hZ)/Min.

Working Temperature: -25+85℃

Service Time:Greater than 10,000 times

Insulation Resistance:Greater than 100Mohm

Special Stair Style Clamp fit to various panel thickness

Dimension: 31x25.50mm

Panel Cut Dimension:

1. Panel Thickness 0.75-1.25mm: 28*22mm

2. Panel Thickness 1.25-2.5mm: 28.20*22mm

3. Panel Thickness 2.5-4.2mm: 28.50*22mm
